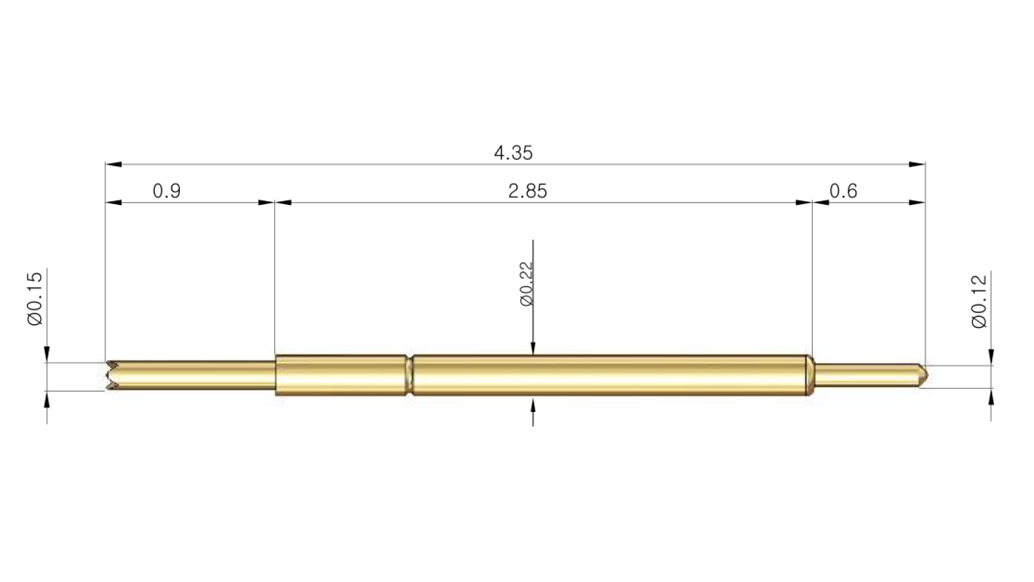

双头双动探针 / Double Pin

GD022L0435MAR (022FB-4.35)

 Mechanical
Spring Force: 17.5gf±20% @0.45mm
Recommended Travel: 0.45mm
Full Travel: 0.50mm

 Material
Top Plunger – BeCu (Au Plated)
Bottom Plunger – BeCu (Au Plated)
Barrel – PBT (Au Plated)
Spring – SWP (Au Plated)

 Electrical Spec.
Resistance: Max 80mΩ
Current Rating: 1A
