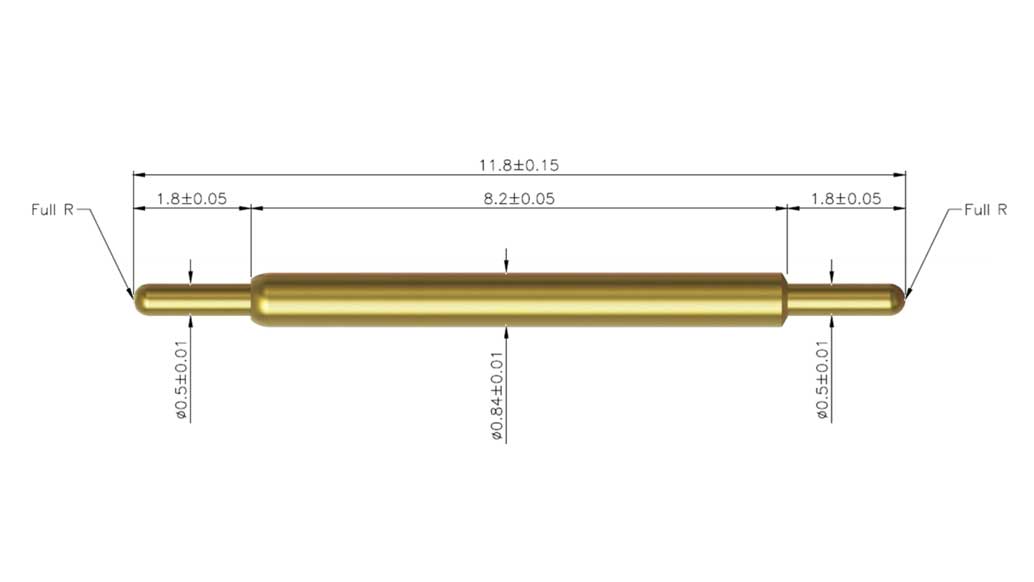

双头双动探针 / Double Pin

GD084L118RR

 Mechanical
Spring Force: 25.2gf±20% @0.60mm
Recommended Travel: 0.60mm
Full Travel: 0.75mm

 Material
Top Plunger – BeCu (Au Plated)
Bottom Plunger – BeCu (Au Plated)
Barrel – PBT (Au Plated)
Spring – SWP (Au Plated)

 Electrical Spec.
Resistance: Max 100mΩ
Current Rating: 4.0A
