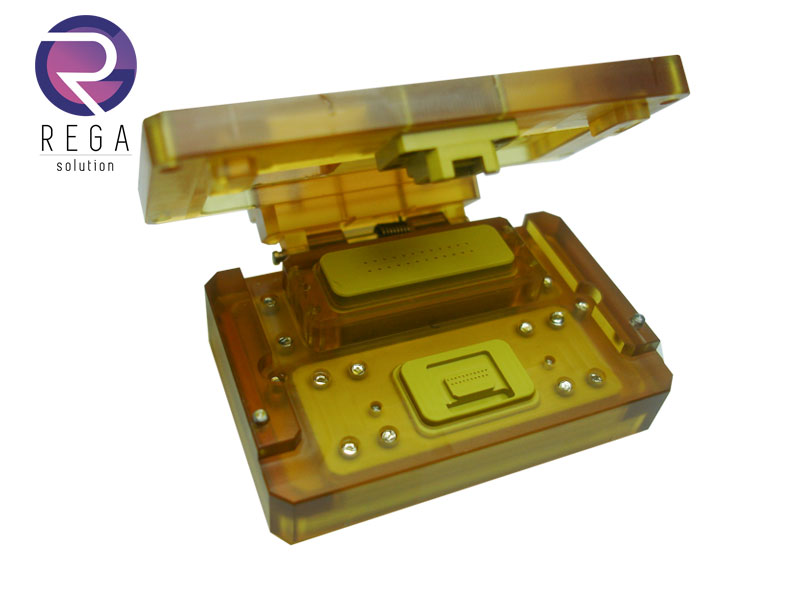

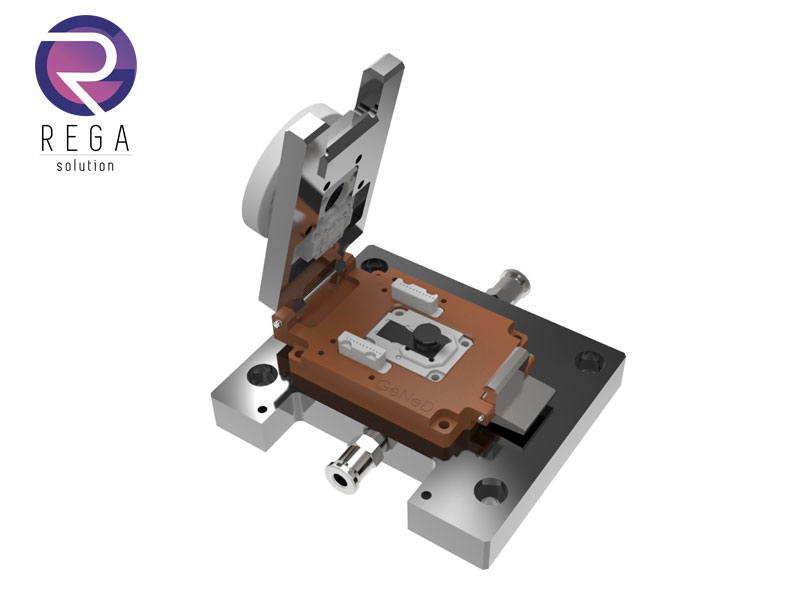

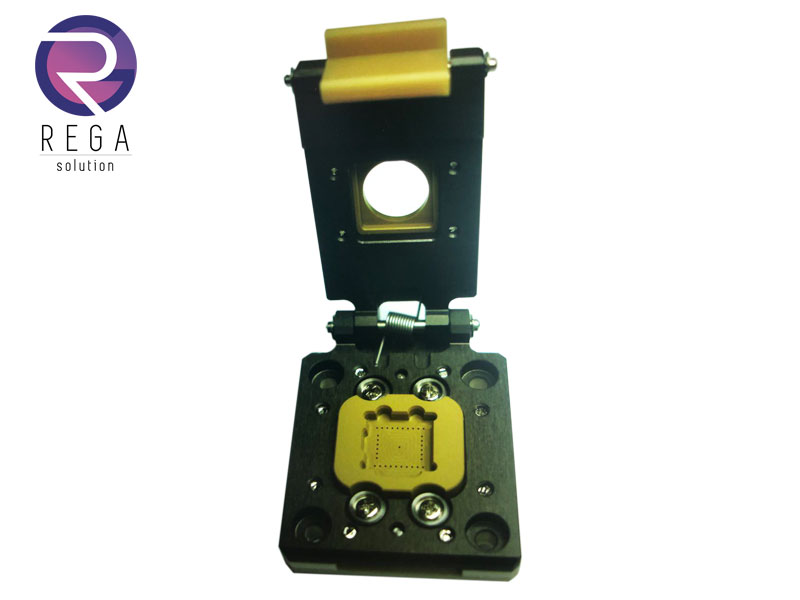

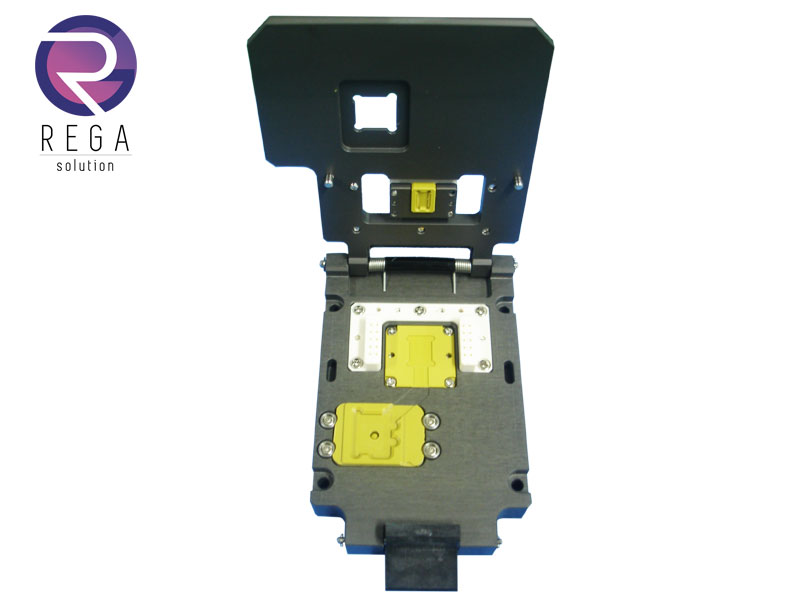

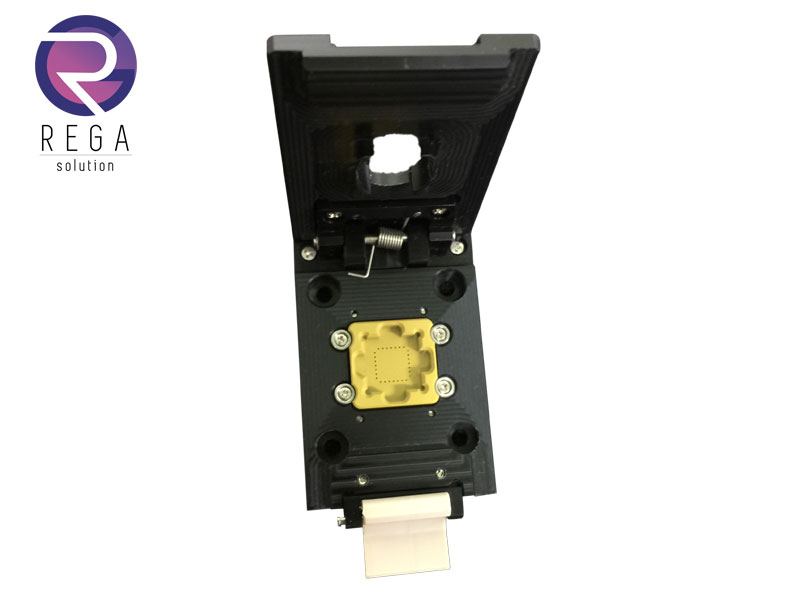

IT测试座 / IT TEST SOCKET
Packages Available

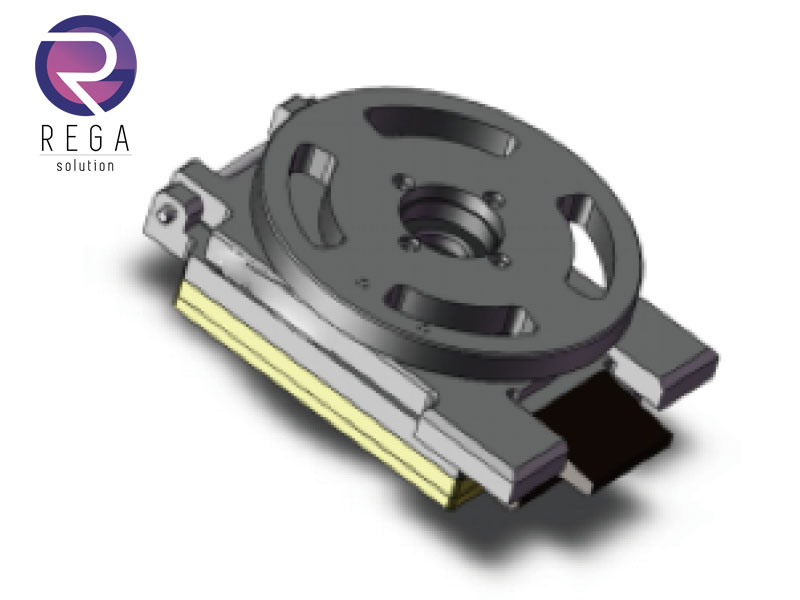

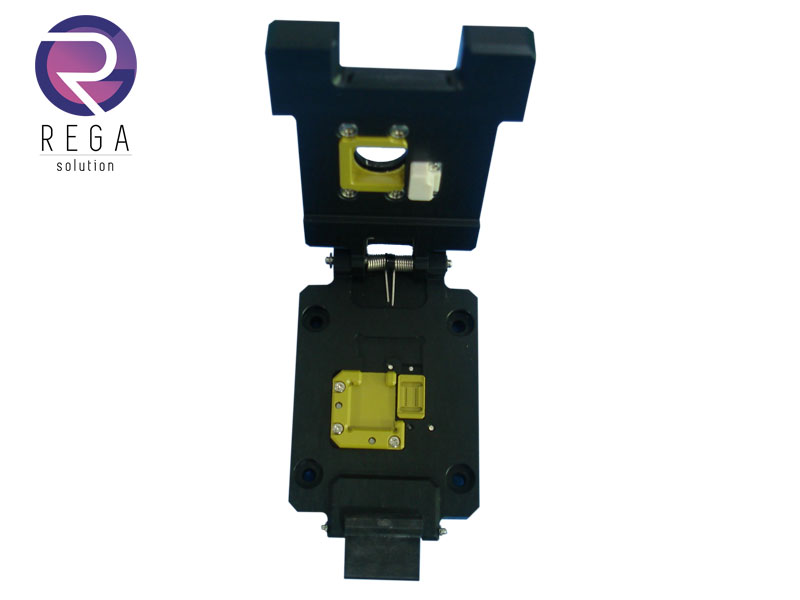

Camera Module / 摄像头模组
ITEM SPECIFICATION
| Test Pitch (μm) | 350μm ~ Pitch |
| Temp. Environmental | -50 ℃ ~ 200 ℃ |
| Life Cycles | 300,000 Cycles |
| Test Pin | Probe Pin ( Single or Double ) |
| Contact Force | 19gf to 40gf |
| Manual & Auto Test | CSN/CS/BC/BCN & Auto (Cyl’Type) |
| Automatic Test | Test Equipment or Jig |
| Socket PCB Mounting | Surface Mounting |
| Socket Size | Customizing |
Packages Available

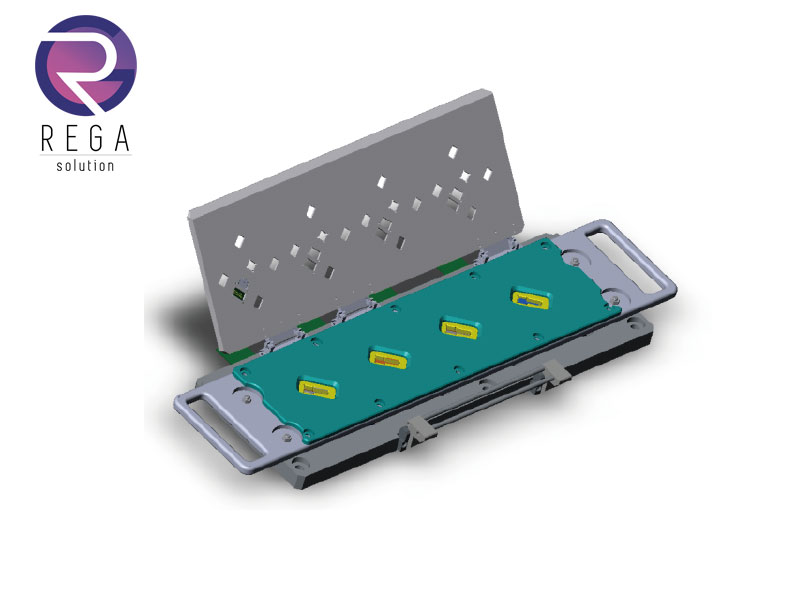

Finger Scan Sensor / 指纹识别传感器
ITEM SPECIFICATION
| Test Pitch (μm) | 400μm ~ Pitch |
| Temp. Environmental | -50 ℃ ~ 200 ℃ |
| Life Cycles | 250,000 Cycles |
| Test Pin | Probe Pin ( Single or Double ) |
| Contact Force | 26gf to 40gf |
| Manual & Auto Test | Cover Take on/off Type |
| Automatic Test | Test Equipment or Jig |
| Socket PCB Mounting | Surface Mounting |
| Socket Size | Customizing |
Packages Available

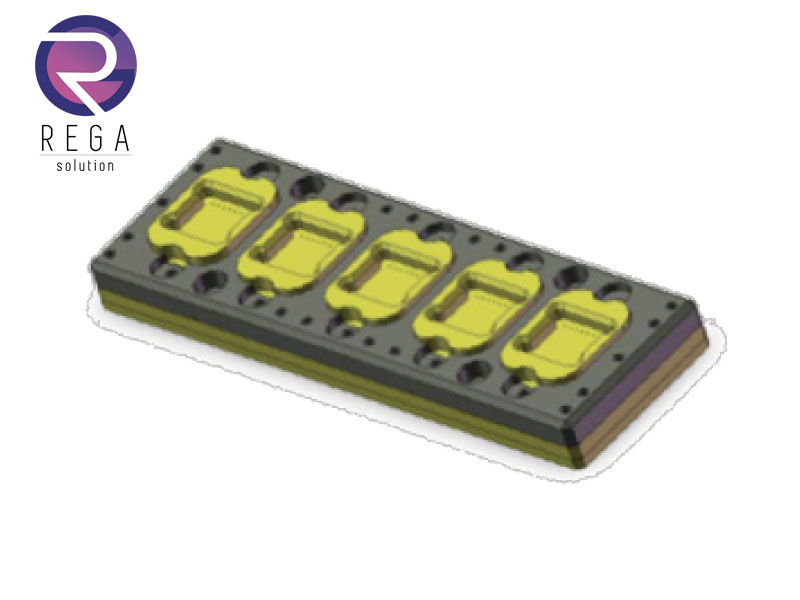

Image Sensor / 图像传感器
ITEM SPECIFICATION
| Test Pitch (μm) | 400μm ~ Pitch |
| Temp. Environmental | -50 ℃ ~ 200 ℃ |
| Life Cycles | 500,000 Cycles |
| Test Pin | Probe Pin ( Single or Double ) |
| Contact Force | 22gf to 40gf |
| Manual & Auto Test | Manual & Auto |
| Automatic Test | Test Equipment or Jig |
| Socket PCB Mounting | Load Board |
| Socket Size | Customizing |
Packages Available

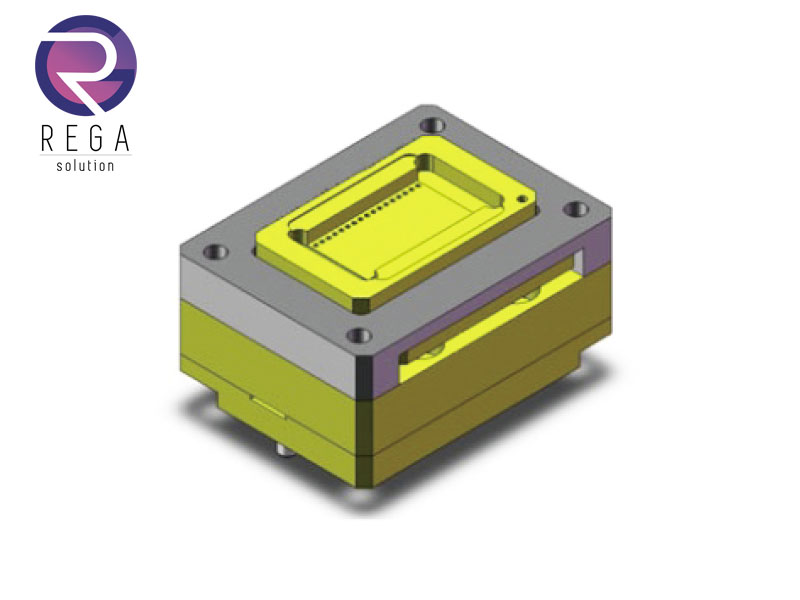

Connector Pin Block / 连接器针模
ITEM SPECIFICATION
| Test Pitch (μm) | 350μm ~ Pitch |
| Temp. Environmental | -50 ℃ ~ 200 ℃ |
| Life Cycles | 250,000 Cycles |
| Test Pin | Probe Pin ( Single or Double ) |
| Contact Force | 22gf to 40gf |
| Manual & Auto Test | |
| Automatic Test | Test Equipment or Jig |
| Socket PCB Mounting | Surface Mounting |
| Socket Size | Customizing |
